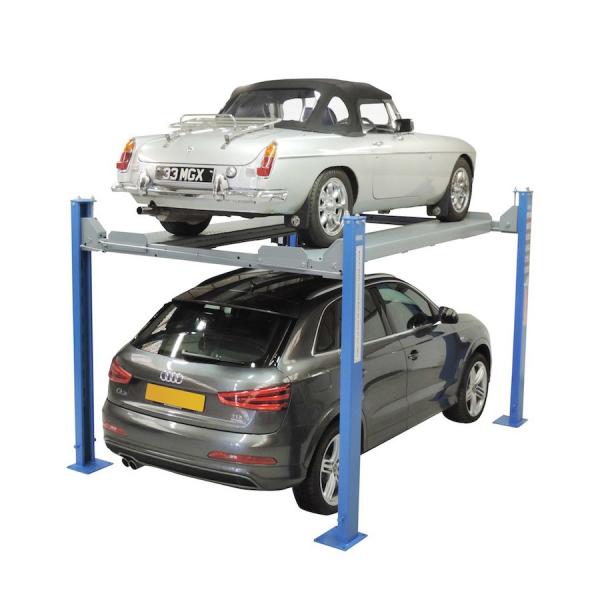

Four Post 2-level Parking Lift
Operation steps
1. Insert the authorized key, turn the switch to the descending
position, and lower the car plate to the ground;
2. The vehicle is entering the garage and stopping at the correct
position;
3, pull the handbrake, close the antenna, close the door, the
driver gets out of the garage;
4. Turn the switch to the rising position, and stop rising when the
car plate rises to the height required;
5. After the car plate stops, another vehicle to be parked can be
driven into the lower part of the car plate;
6. During the operation of the parking system, if someone or a car
enters or exits the parking system, all the running actions will
stop. After confirmation, press the "start" or "return" button, and
the corresponding actions will continue. In case of emergency,
press the "emergency stop" to cut off the power supply and stop all
actions;
7, when taking the upper vehicle, pay attention to driving out the
lower vehicle first.
Description
The upper and lower parking aces of the parking equipment are one
unit, the lower parking spaces can directly access vehicles, and
when accessing the upper vehicles, the lower vehicles need to be
removed.The front entrance and exit of the equipment do not have
any column beam and suspension facilities, which is more convenient
for vehicles to enter and exit.
- According to the driving mode can be divided into hydraulic drive
type and motor drive type.
- According to the number of layers, it can be divided into 2 layers,
3 layers and 4 layers.
- According to the number of columns can be divided into 2 columns, 4
columns.
- According to the location can be divided into ground type and pit
type.
Characteristics
1. For limited parking space, the number of parking can be doubled
and a lot of space can be saved;
2, electric control, simple operation, convenient access car;
3, simple structure design, smooth operation;
4, Equipped with locking device;
5, with emergency stop button, which will stop when special
circumstances occur to avoid accidents;
6, the equipment is simple, convenient to use, low price.
7, smooth operation, low working noise;
8. It is suitable for the use of supporting parking lots in
commercial, governmental and residential areas;
9, device: anti falling device, limit protector, emergency stop
switch, etc.
Product advantages
1. The height of the equipment is 1700 mm, the lifting weight is
2700 kg. Suitable for Sedans and SUVs.
2. The size of the equipment can be customized according to
customer requirements.
3. Adopt advanced hydraulic transmission system, hydraulic pump
output high pressure oil to drive the hydraulic cylinder, hydraulic
cylinder to drive the wire rope, realize the car plate synchronous
and steady rise or fall, to achieve the purpose of access car.
4. Short lifting time, take the car quickly, generally within 40
seconds.
5. Four wheel positioning device and secondary lifting device can
be added.
6. The structure of the equipment is all laser cutting, beautiful
appearance, easy installation, easy maintenance.
7. It is widely used in hotels, enterprises and public institutions
and residential areas
Steel structure
A. The steel is produced by well-known domestic steel mills and
supplied directly, and has strict quality assurance procedures and
quality (physical and chemical) inspection certificate.
B. 8.8 high strength bolt connection, with enough pre-tightening
torque, not easy to loosen.
C. Surface treatment process: the surface of the steel structure of
the equipment is derusting treated to remove rust and scale cinder.
The derusting grade of the surface reaches Sa2.5 and the surface
roughness reaches 25-40Mu to ensure the anti-rust grade of the
workpiece surface after spraying.
D. surface antirust coating: steel structure parts surface antirust
coating can be used in the following process: pickling spray
Car plate: the length of the upper plate is greater than the length of the
car body. The car plate is made of galvanized wave plate, which is
rolled into one by the standardized assembly line. With high
strength, high corrosion resistance and high interchangeability.
The side beam of the car plate is formed by cold pressing of the
bending plate, which has strong corrosion resistance. The assembly
of the car plate is connected by bolts without welding, with
beautiful appearance, high strength and long service life. The
inner width of the car plate is 2080mm, which is more spacious and
humanized than the traditional width of 2000mm.
Devices
A. Warning device in operation: when the device is running, it will
automatically start the buzzer to warn the user or the vehicle to
pay attention.
B. Emergency stop button device: there is an emergency stop button
in the position of the button seat. Press the button to cut off the
power supply in case of special emergency, which will stop all
mechanical movement and prevent accidents.
C, anti-fall device: the car plate rises to a certain height and
stops running. The anti-fall device starts to prevent the car plate
from falling suddenly.
D, warning signs and operation instructions: set up operation
instructions board, notice board, notice board of available vehicle
size, and identification board of reversing or forward storage in
the appropriate position of the garage.
E. Upper positioning limit switch: in the process of lifting, the
lifting height of the car plate is limited to prevent the lifting
height of the car plate from exceeding a larger height.
F. Power off brake device: if the garage suddenly loses power, the
car plate will stop running immediately to protect the vehicle.

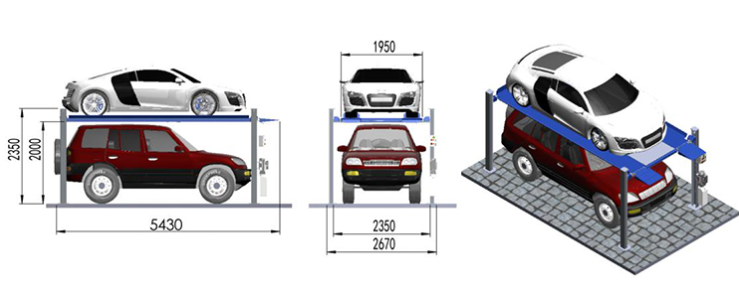

Technical Parameters
| Item | Parameters |
| Name | 4 post parking lift |
| Parking Lift Dimensions | 4810*2666*2084mm |
| Out package dimensions | 4200*630*630mm |
| Max Car Weight | 2700kg |
| Post height | 2100mm |
| Car plate width | 2100mm |
| Lifting speed | 1.5-1.8m/min |
| Distance between drive boards | 969mm |
| Total height | 3500mm |
| Max Lifting Height | 1700mm |
| Lifting Time | 40S |
| Fall Time | 50S |
| Motor | 2.2kw |
| Mode of operation | Manual Button |
| Mode of control | Hydraulic drive+ chain control balance |
| Mode of unlocking | Manual |
| Electricity | 50HZ, 220V, 1P/380V, 3P; |
| Noise | 75dB, max |
| Packing size each unit | 4200*630*630mm |
