3 Storey Commercial Parking Lifts PSH Multi Level Car Parking System

Ask Lasest Price
Brand Name :	ChangYue
Model Number :	PSH
Certification :	CE ISO9001
Price :	to be negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100 Unit per month
Delivery Time :	30-60 days

Add to Cart

Product Details
Company Profile

3 Storey Commercial Parking Lifts PSH Multi Level Car Parking System

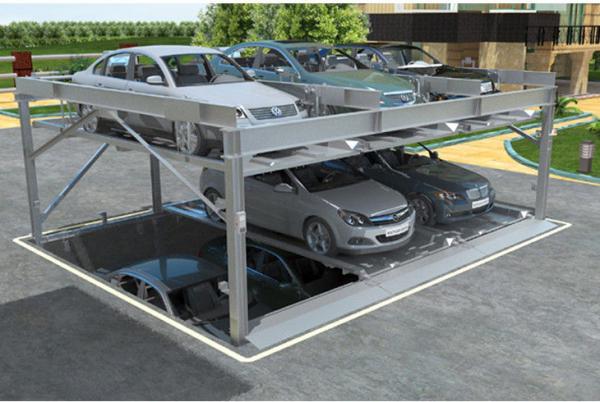

PSH (-1+2) 3-Level Pit Puzzle Parking System

Characteristics

It saves the land area and takes full use of the underground area. It can be designed with neighbored multi-sets layout to raise the parking numbers of cars. The middle and bottom cars may have advantages of anti-dust, anti-rain, anti-theft. It is safe and reliable and easy in operation.

Low area coverage and high usage rate of space; The levels and columns will be added to raise the number of cars according to the customer's requirements; It may be designed with full-closed style to adjust the surrounding environment; It operates steadily without noise and with fast operating speed and short parking and releasing time; Multi-ways of safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading.

Work Principle

This system is designed with 3 levels, 1 in the pit, 2 on the ground, each column total 3 cars can lift up and down freely. There is 1 spare car on the ground level as an exchange space. The ground level car can slide left and right for upper car fall down. The ground car can go in and out freely, the pit car can lift up when the ground car slide to be a spare space, and go in and out then. The top car can fall down when the ground car slide to have the spare space. The ground level space has big pallets covering the pit area.

Main Structure

Steel structure
Car Pallet
Lifting system
Sliding system
PLC control system
Drive system
Safe-guard system

Technical Parameters

Item	Parameters
Model	PSH(-1+2)
Levels of system	3
Spaces	Based on requirements
Size of car (LWH)	500018501550mm
Size of car (LWH)	500018502050mm
Weight of car	2000kg
Motor power	Lift: 5.5~7.5KW
Motor power	Slide: 0.2kw
Safeguard devices	anti-fall frame
Modes of operation	IC card reading / Manual button with keyboard
Controller	PLC
Warning devices	Sound, light, electricity
Malfunction indication	Fault diagnosis by computer, liquid crystal display
Frame composition	Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment	Galvanized treatment and high-grade anti-corrosion painting
Parking way	Forward in, Back out
Electricity	3 phases 5 wires, 380V, 50HZ

Our advantages
