Puzzle parking system is the most widely used stereo parking solution in the market at present, and also one of the stereo garage types with the highest market share in China.

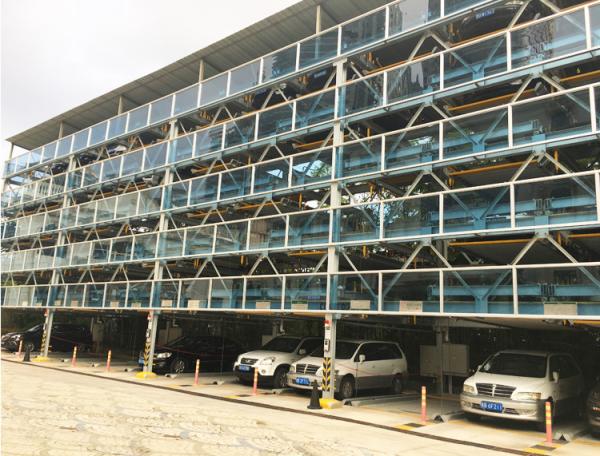

PSH 6-level puzzle parking system mainly using motor drive steel wire rope lifting, it can build 6-level mechanical parking garage and can be designed up to eight floors on the ground. The entrance and exit are on the ground floor and with a large span design, very suitable for building in the green square, residential buildings and office basement. It make full use of the underground area compared with the same type of equipment, it is a relatively high space utilization rate of equipment.

PSH 6 - layer puzzle parking equipment is a parking solution which realizes the access of vehicles by lifting and sliding the platform. Its scale can be large or small, can be arbitrarily combined and arranged according to different terrain and space, the space utilization rate is high, the equipment is safe and reliable, the access car is fast, the use and maintenance is simple. Therefore, it is a multi-storey stereo parking solution with small footprint and low construction cost.

PSH 6-floor puzzle parking system can build 13 mechanical parking spaces in the space of 3 flat parking spaces, which is a stereoscopic parking solution suitable for the renovation of old residential areas.

Main Structure

• Steel structure
• Top frame
• Slide frame
• Car Pallet
• Lifting system
• Sliding system
• PLC control system
• Safe-guard system

Work Principle

This system is designed with 6 levels and multi-columns layout. Each layer is designed with a spare space as an exchanging space. All spaces can be auto-lifting freely except the spaces in the first layer and all the spaces can be auto-transverse moving except the spaces in the top layer. When a space needs to park or release a car, all spaces under the space will make a one space transverse moving to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in freely.

Technical Parameters
