3 level undergroud 5 level on ground puzzle parking system

Work Principle

3 level undergroud 5 level on ground puzzle parking system is designed with 8 layers and multi-columns layout. Each layer is designed with a spare space as an exchanging space. All spaces can be auto-lifting freely except the spaces in the first layer and all the spaces can be auto-transverse moving except the spaces in the top layer. When a space needs to park or release a car, all spaces under the space will make a one space transverse moving to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in freely.

Technical Parameters

Item	Parameters
Product name	3 level undergroud 5 level on ground puzzle parking system
Drive Mode	Hydraulic drive
Levels of system	8
Size of car (L*W*H)	5000*1850*1550mm 5000*1850*2050mm
Car Weight	2000kg
Operation Mode	Auto IC card/ Manual button
Lifting motor power	15KW
Lifting speed	20-28M/MIN
Sliding motor power	0.2KW
Sliding speed	7.5M/MIN
Control Method	Touch screen / Push button or IC card
Electricity	3 phases 5 wires, 380V, 50HZ
Safety devices	Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection Cylinder stroke protection, and anti-fall frame
Warning devices	Sound, light, electricity
Malfunction indication	Computer malfunction diagnosis, human-computer communication information display, liquid crystal display

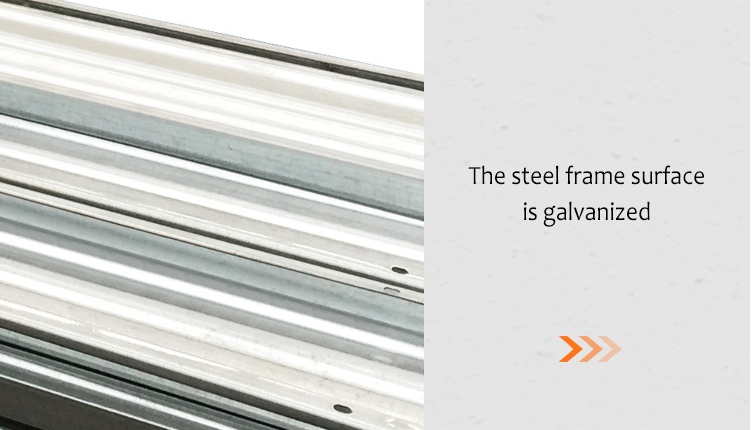

Parts appearance treatment	Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller	PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and out	Forwarding in and forwarding out;

Characteristics

• OEM service, it can be built according to the customer requirements and dimensions.
• Complete safety protection functions
• Simple and practical structure and appearance
• Safe and fast operation
• Low area coverage and high usage rate of space.
• The layers and columns will be added to raise the number of cars according to the customer's requirements.
• It may be designed with full-closed style to adjust the surrounding environment.
• It operates steadily without noise and with fast operating speed and short parking and releasing time.
• Multi-channels safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading

Main Structure

• Steel structure
• Car Pallet
• Lifting system
• Sliding system
• Hydraulic system
• PLC control system
• Safe-guard system

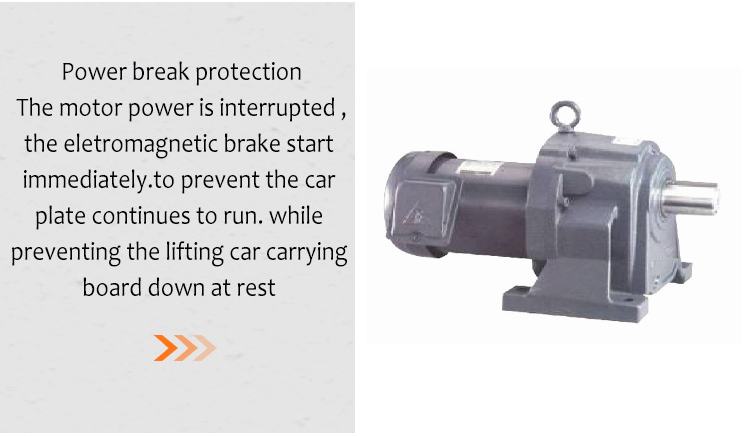

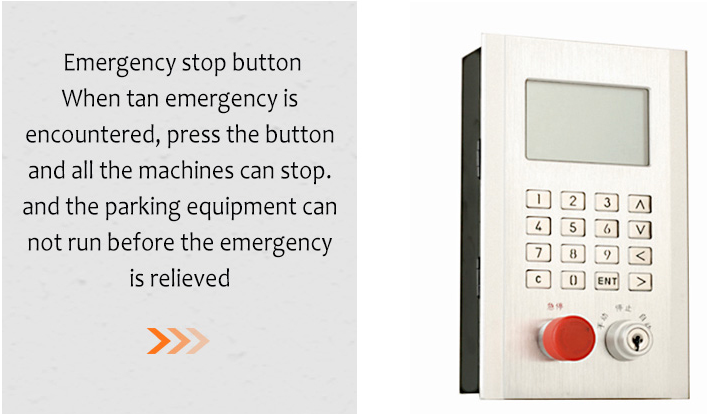

Product Detail

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
