Four Floors 4 Post 4 Cars Parking Lift

As the name implies through the lifting of a number of car carrying board to achieve access to the car process.This kind of three-dimensional parking garage can be built up to four storeys with three car carrying boards.The biggest characteristic is to need manual operation, take the car above, the car below need to drive away first.This 4-floor simple lifting stereo garage exported to the United States is a simple, effective, efficient and safe parking solution driven by hydraulic system and wire rope.With safety and anti-falling devices, columns can be shared to reduce construction costs.

Work Principle

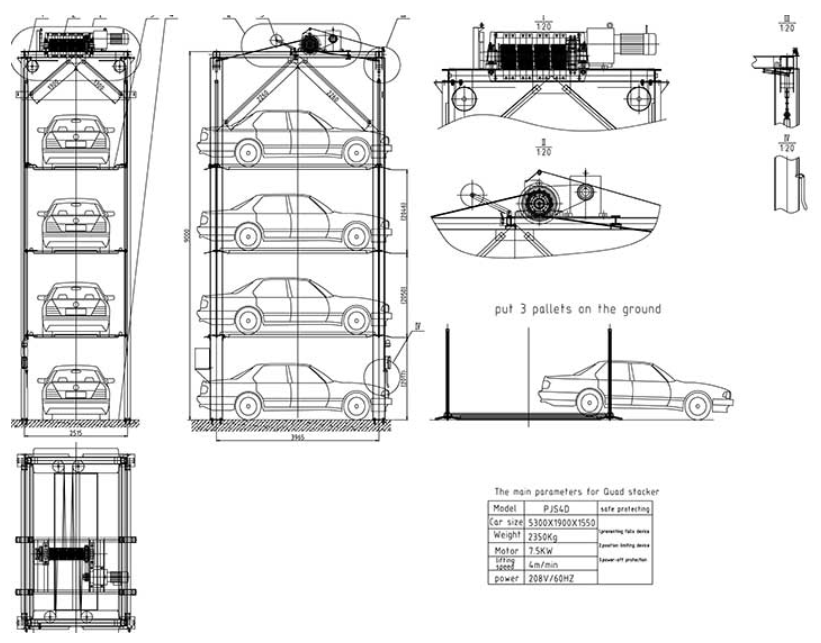

This system is designed with 4 floors to park 4 cars. There are 3 full closed pallets with slopping entrance edges for cars driving in. When parking, all pallets fall down to the ground, the car will park into the top floor first, then top car lift up to position; the second car parks into the middle pallet and lift up to position again; then the third car parks into the bottom pallet and lift up to position; the forth car parks into the ground finally. When retrieving, reverse the steps; Only one by one parking or retrieving; 4 cars will belong to 1 owner or 1 operator. It is mostly used for storage of car sales center.

It is also only 3 floors with 2 full closed pallets to park 3 cars;

Characteristics

• It saves the land area and takes full use of the space area.
• It can be designed with shared columns for more sets to raise the parking numbers of cars.
• Hydraulic cylinder lift with high safety and green environment protection.
• Pallets are full closed design to avoid leakage.
• Designed with guide rail structure to guarantee low noise and steady operation.

Adapted places

Open places for more cars parking, suitable for car sales center for storage.

Advantages

• Hydraulic cylinder fixed stroke control, never over-going, never accident; Motor type easy accident when sensors wrong;
• Double faster speed than motor chain type; Quick parking and retrieving in rush hours.
• Best safety guarantee, sensors, photocells, for all possible detection; Patent safety frame last protection on each pallet;
• Saving electricity without consumption of power when falling.
• Easy maintenance, saving much maintenance cost;
• Low noise, almost silence during operation;
• Full galvanized treatment and most patents design for long-life guarantee.
• No. 1 Sales and biggest parking factory in China with best advanced equipments for quality guarantee.

Technical Parameters

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
