    2350kg Mechanized Car Stacking Systems Steel Structure 6 Levels

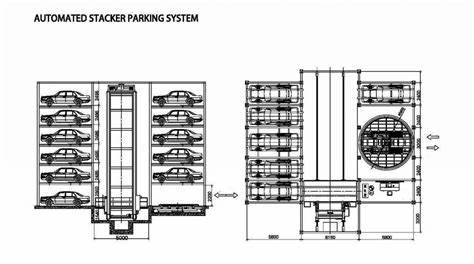

    PXD Full mechanical steel structure design stacker car parking system
    Working principle
    Each layer has a carrying trolley; the trolley will carry the car on this floor to the parking space or put it on the car elevator to realize parking or retrieving.
    Product Description
    1. This full automatic plane moving parking system adopts wheels clamped mode;
    2. It is designed with 1 set of mechanical parking system, 1 entrance and 1 lifter;
    3. The parking project designed with 1 sliding trolley, 1 carrying cart;
    4. Control: Central control room with PLC auto control system;
    5. Mode of operation: ID card auto mode / Screen touching auto mode/ Button manual mode;
    6. Supervision monitoring system: Closed monitoring system, (Control all parking system in the central control monitoring room); LED guiding monitor can show all orders and signals, such as over length, over width, over height, car position, operation moving process;
    7. All car will be at ground level parking or retrieving by full automatically moving;
    Characteristics
    1. Full automatic, safe and reliable with high efficiency to park or retrieve a car;
    2. Space saving and adaptable more sites of parking;
    3. Suitable at ground or underground area for more parking demands;
    Structure (Optional)

    Structure of PPY automatic parking system can be steel structure made by the system producer also can be concrete floors made locally by the buyer. It is optional, but the concrete floor must be made according to producer design and dimension requirements.

    This project offer is full mechanical steel structure design;



    Technical Parameters


    ItemParameters
    ModelPXD
    Levels of system6
    SpacesBased on requirements
    Size of car (L*W*H)5300*1900*1550mm
    5300*1900*2050mm
    Weight of car2350kg
    Motor Power of stackerLift15kw
    Slide5.5kw
    Carrier1.5kw
    Turning2.2kw
    SpeedLift60m/min Frequency control
    Slide30m/min Frequency control
    Vertical shift40m/min Frequency control
    Turn3.0rpm Frequency control
    Control MethodTouch screen / Auto IC card / Button Manual
    Parking wayForward in, Forward out
    Electricity3 phases 5 wires, 380V, 50HZ

    FAQ

    Q: Are you a factory or trading company?
    A: Changyue Parking is a factory with more than 20 years’manufacturing design experience. We can offer you the most favourable price and provide you the quick feedback after-sale service.

    Q: What is the warranty term of your product?
    A: The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the new parts and dispatch our engineer to solve it.


    Q: How to make the installation? Can you send engineer to us?
    A: First we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.

    Second, If you’re new for the car parking system, We can dispatch our engineer to guide the installation, the cost will belong to the buyer.


    Q: How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


    Q: What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q: How to repair and maintain the product?

    A: You don't need too much maintenance because our products all use big brand electric devices and we pay more attention on quality, the whole system can work well in long time. If necessary, we suggest that small parts are maintained once a week, the large parts are maintained once a month.


    Q: If the failures of parking equipment happened from customers which are not in the warranty period, how does the company deal with it?

    A: First, we would provide some spare parts when the parking system ship out. If any parts need to be replaced in the maintainence work. We will check and help to slove problems by remote operation.

    Second, if other parts are dameaged, we will replace them by remote operation upon agreement between both sides. If it is necessary to dispatch our engineers to the site, all the cost occurred will belong to the buyer.
