Four Post 2-level Parking Lift

Description

Home use stereo garage is a kind of mini mechanical parking system. It is different from the public stereo parking lot, the main object is private villas or private independent parking space.

• According to the driving mode can be divided into hydraulic drive type and motor drive type.
• According to the number of layers, it can be divided into 2 layers, 3 layers and 4 layers.
• According to the number of columns can be divided into 2 columns, 4 columns.
• According to the location can be divided into ground type and pit type.

Four Post 2-level Parking Lift can be used for family, apartments, hotels and other places; it can be designed based on site dimensions; 1 car space will park two cars to save more spaces; it can be installed both inside room and outside; For family use, it can provide 220V power; it can be used both for parking and repairing cars; Special-made for SUV.

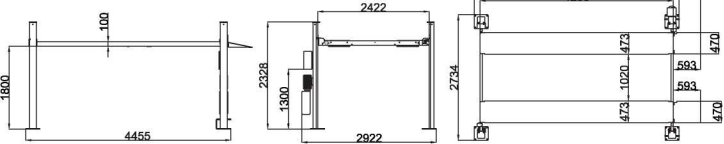

Technical Parameters

Characteristics

• Hydraulic driven, steel rope lifting system.
• Single stage dual-cylinder lifting.
• High polymer polyethylene slide blocks, wear-resistance.
• Platform runway & ramps made of diamond steel plates.
• Movable galvanized steel plates in the middle.
• Anti-falling mechanical locks in four posts at different heights to ensure safety.
• Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

Advantages

• Hydraulic drive, steel rope lift, hydraulic system makes the system very low noise and steady working;
• Single unlocked by manual or four sides unlocked automatically with anti-fall devices; the anti-fall blocks installed in the columns will prevent the car platform to fall informally to insure safety of the car;
• Self-lubrication bearing to guarantee the safety at any height;
• Slippery runways and the traction plate for convenient use; the distance between two runways plates are fixed, there is movable plate to receive oil in the middle;
• Appearance with high quality painting, green environment protection without lead, beautiful color, anti-rust painting for long time use;
• This park lift is convenient and reliable, easy operation, quick installation, simple installation at site, no welding, no cutting, low requirements of land area; and it is movable, easy re-installation to adapt all sites;
• Lift weight can reach 3mt for double cars parking;
• Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated

Main Structure

• Steel structure
• Car Pallet
• Electrical system
• Hydraulic drive system or motor drive system
• Lifting system
• Drive system
• Safe-guard system

Project case

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
