Product characteristics

• Scope of application: Outdoor multi-level parking system and indoor concrete type well type parking system.
• Drive mode: Hydraulic pulley driven by large drive ratio. The hydraulic system adopts pump group pumping station. Every pump can become the backup of other pumps. It is low noise, high working and safety.
• Car exchanging: comb type carrier or tire gripping carrier.
• Layouts: ground layout, half ground half under underground layout and underground layout.
• Entrance observation mirror, voice prompts, LED display are equipped.

Work Principle

When storing the car, the car is parked on the platform at the entrance of the parking lot.The detection device at the entrance of the vehicle can park the vehicle on the parking floor of different heights by detecting the height of the vehicle. The robot moves underneath and moves the vehicle

to the transporter using the comb gear cross action. It moves underneath the vehicle and moves the vehicle to a rotating platform that can be lifted or lowered, and parks the vehicle in a specific space through a horizontal movement action.

When picking up the car, the user swipes his card or makes an appointment through APP at the exit of the parking lot, and the system sends instructions to the parking robot. After receiving the instruction, the parking robot moves to the position of storage frame, and uses the comb gear cross action to move the vehicle from the storage frame to the transporter. Then the vehicle is moved to the rotating platform that can be lifted or lowered through the plane movement, and the vihicle is finally transported to the extrance of the parking lot and turned the front end to exit direction, which it convenient for users to pick up the car.

Equipment structure

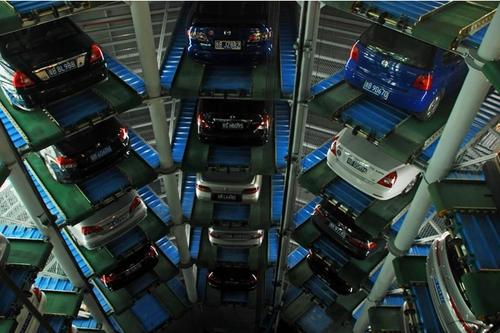

PCS circular vertical lifting parking system is mainly composed of steel structure, lifting and rotating platform, vehicle transporter (parking robot), storage frame, entrance and exit system, detection device, safety device, intelligent frequency conversion control system, monitoring and parking charge management system.

Technical Parameters

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
