Multi levels puzzle car parking system​

Work Principle

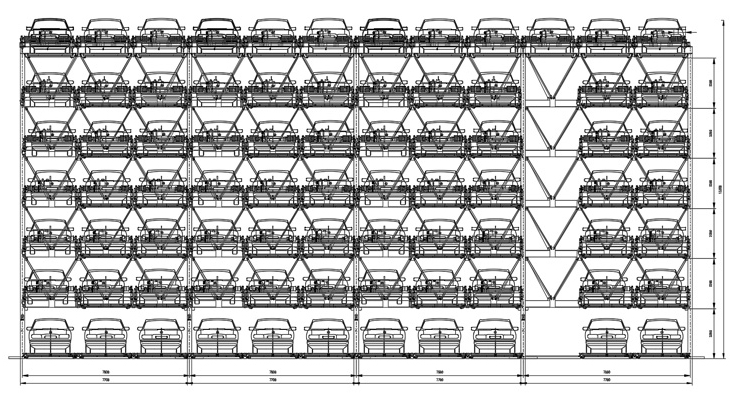

The equipment is designed with multi-floor and multi-row. Each floor is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first floor. All the spaces can slide automatically except the spaces in the top floor. When a car is needed to be parked or released, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.

Characteristics

• Less land occupation, high space using rate.
• Different types of packing like full packing, half packing, easy packing and naked packing are available.
• Low building cost and low maintenance cost.
• Running smoothly and fleetly, low noise, short accessing time.
• Multiple safety protection like anti-fall, anti-collision, anti-overload and a series of safety protection device.
• Adopted hydraulic speed regulation technology, work smoothly.

Main Structure

• Steel structure
• Car Pallet
• Lifting system
• Sliding system
• Hydraulic system
• PLC control system
• Safe-guard system

Technical Parameters

Item	Parameters
Drive Mode	Hydraulic drive
Levels of system	7
Size of car (L*W*H)	5000*1850*1550mm 5000*1850*2050mm
Car Weight	2000kg
Operation Mode	Auto IC card/ Manual button
Lifting motor power	11-15KW
Lifting speed	15-26M/MIN
Sliding motor power	0.2KW
Sliding speed	7.5M/MIN
Control Method	Touch screen / Push button or IC card
Parking way	Forward in, Back out
Electricity	3 phases 5 wires, 380V, 50HZ
Safety devices	Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection,
Malfunction indication	Computer malfunction diagnosis, human-computer communication information display
Parts appearance treatment	Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller	PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and out	Forwarding in and forwarding out;

Production Process

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
