4 Levels Smart Car Parking System 2500kg Car Storage Lift For Garage

Ask Lasest Price
Brand Name :	ChangYue
Model Number :	PSH4
Certification :	CE ISO9001
Price :	to be negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100 Unit per month
Delivery Time :	30-60 days

Add to Cart

Product Details
Company Profile

4 Levels Smart Car Parking System 2500kg Car Storage Lift For Garage

4 levels puzzle car parking system

Work Principle

This system is designed with 4 layers and multi-columns layout. Each layer is designed with a spare space as an exchanging space. All spaces can be auto-lifting freely except the spaces in the first layer and all the spaces can be auto-transverse moving except the spaces in the top layer. When a space needs to park or release a car, all spaces under the space will make a one space transverse moving to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in freely.

Characteristics

Puzzle parking system is the most widely used stereo parking solution in the market at present, and also one of the stereo garage types with the highest market share in China.

PSH 4-level puzzle parking system using motor drive wire rope or chain lifting, it can build 4-layer mechanical parking garage and can be designed up to eight floors on the ground. It can be built on the ground, also built in the basement. the entrance is on the ground floor, with a large span design, very suitable for building in the green square, residential buildings and office basement, compared with the same type of equipment, it make full use of the underground area, it is a relatively high space utilization rate of equipment.

PSH 4 - layer puzzle parking equipment is a parking solution which realizes the access of vehicles by lifting and sliding the platform. Its scale can be large or small, can be arbitrarily combined and arranged according to different terrain and space, the space utilization rate is high, the equipment is safe and reliable, the access car is fast, the use and maintenance is simple. Therefore, it is a multi-storey stereo parking solution with small footprint and low construction cost.

PSH 4-floor puzzle parking system can build 9 mechanical parking spaces in the space of 3 flat parking spaces, which is a stereoscopic parking solution suitable for the renovation of old residential areas.

Main Structure

Steel structure
Top frame
Slide frame
Car Pallet
Lifting system
Sliding system
PLC control system
Safe-guard system

Technical Parameters

Item	Parameters
Drive Mode	Motor + wire rope or motor + chain
Levels of system	4
Size of car (LWH)	500018501550mm 500018502050mm
Car Weight	2000kg/2500kg
Operation Mode	Auto IC card/ Manual button
Lifting motor power	5KW
Lifting speed	4-6M/MIN
Sliding motor power	0.2KW
Sliding speed	8M/MIN
Control Method	Touch screen / Push button or IC card
Parking way	Forward in, Back out
Electricity	3 phases 5 wires, 380V, 50HZ
Safety devices	Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection Cylinder stroke protection, and anti-fall frame
Warning devices	Sound, light, electricity
Malfunction indication	Computer malfunction diagnosis, human-computer communication information display, liquid crystal display
Parts appearance treatment	Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller	PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and out	Forwarding in and forwarding out;

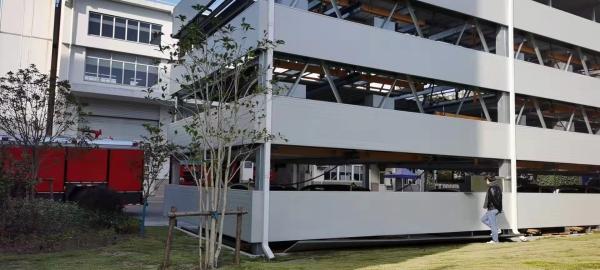

Project case
