PCX Space Save Fast Parking 12 Cars Or SUVs Rotary Parking System

Descriptions

Rotary parking system is a kind of circular parking equipment similar to the carousel, access vehicles through all the rotation of the platform, there are generally 8 parking spaces,10 parking spaces,12 parking spaces and other types.

Vertical Rotary Parking System 12 Cars or SUVs is the Rotary Parking System for 12 Cars; it mainly consists of steel structure, load carrier, drive system, control system, safety and detection system.

It is the designed system that an automobile is put in the cage, the cage rotates up and down as well as right and left and then the automobile is parked.

This Automatic Parking System is designed 12 cars or 12 SUV's to be parked easily and safely, on the surface area required to park 2 cars. It is simple to operate with the driver parking and leaving the vehicle in the system at ground level.

Once the driver leaves the incorporated safety zone the vehicle is automatically parked by the system rotating to lift the parked car away from the bottom central position. This leaves an empty parking space available at ground level, for the next car to be parked on.

The parked car is easily retrieved by IC card or pushing the button for the relevant position number the car is parked on. This causes the required car to rotate down to ground level ready for the driver to enter the safety zone and reverse the car out of the system.

Working Principle

Each space has a car pallet, the pallets for parking or retrieving will rotate along a direction to realize the parking or retrieving space to the ground; Driver can park or get the car directly in the ground space;

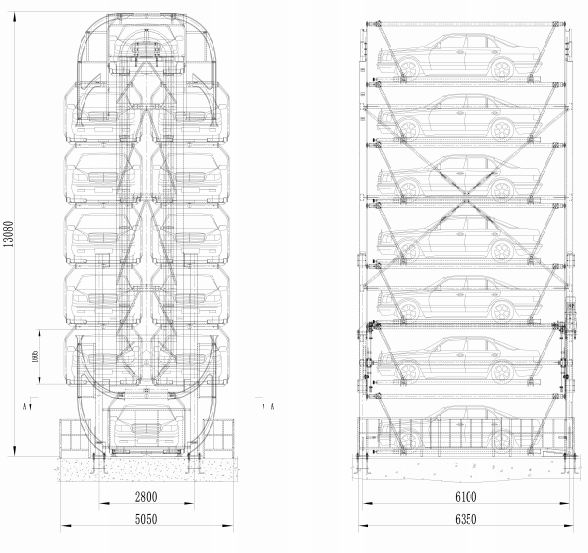

Steps: All cars will rotate along the clockwise or anti-clockwise until the car get to ground; For example in the following picture show, if we want to get the top car, all the cars rotate along anti-clock direction; The top pallet car falls to the ground and driver can take it away directly;

Characteristics

1. Covering small land area and parking more spaces with high usage of land area; Two car spaces can park from 8 to 12 cars or more; Flexible and easy parking with less requirement of the land area and it is easy and convenient for moving;

2. Frame structure design with fine structure and loading weight, well earthquake resistance; Steel structure adopts rectangular pipes, HA pipes best quality steel with fine appearance; Designed with different sizes steel according to different loading weight; Earthquake resistance is 7 scales;

3. The lifting structure has beautiful humanization design to avoid leakage;

4. Convenient installation, fastening directly by bolts, the car pallet is assembly or integral installation with short period of installation time;

5. Motor is world famous brand with advantages of low noise, small volume, light weight, fewer malfunctions and saving energy;

6. Chain or steel rope adopts safety index over

7; anti-corrosion and high anti fatigue performance;

8. Simple and reliable structure, low malfunction, less motor (12 cars spaces only 1 motor;), low malfunction and easy maintenance;

9. Quick installation time and easy maintenance with the least trouble. Unit can be reinstalled in a new location, if necessary.

Main Structures

Rotary parking system is composed of 7 basic structures

Foundation, Steel structure, Pallets, Transmission, Control System, Safety Protection Devices and other Auxiliary Devices;

Technical parameters

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

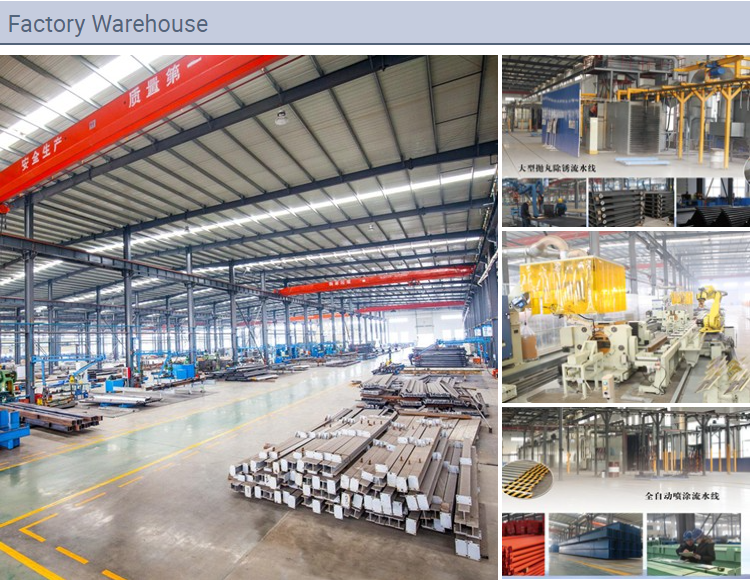

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
