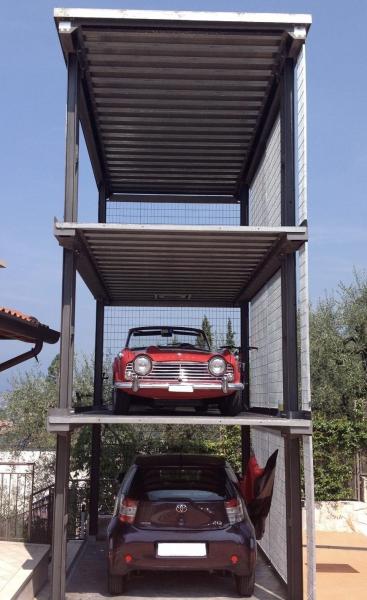

Hydraulic Pit Lift Parking System, 2 cars in the pit, 1 car on the
ground, no sliding-PJS(-2+1)
Working principle
Hydraulic Pit Lift Parking System is designed with 3 levels, 2 in
the pit, 1 on the ground, each column total 3 cars can lift up and
down freely. The top car can go directly in and out; the middle car
can go in and out when the middle car lift to the ground level; the
bottom car can go in and out freely when it lift up to the ground
level. It has big pallets covering the top pit area. Total depth of
pit will be 4260mm.
The pallet is 150mm higher than the land level, it has a 1500mm
slopping way for the car parking, and it has a tight cover with the
ground frame against water into the pit. It is designed with water
drainage system, maintenance entrance with ladders.
The top car pallet can be planted with grass and flowers to keep a
wonderful environmental requirements.
Technical Parameters
| Item | Parameters |
| Product name | Hydraulic Pit Lift Parking System |
| Model | PJS(-2+1) |
| Levels of system | 3 |
| Spaces | Based on requirements |
| Size of car (L*W*H) | 5000*1850*1550mm |
| 5000*1850*2050mm |
| Weight of car | 2000kg |
| Motor power | Lift: 5.5~7.5KW, |
| speed: Lift: 3.6m/min |
| Fall: 5m/min |
| Slide: 0.2kw |
| Safeguard devices | Hydraulic whole protection and anti-fall frame |
| Modes of operation | IC card reading / Manual button with keyboard |
| Controller | PLC |
| Warning devices | Sound, light, electricity |
| Malfunction indication | Fault diagnosis by computer, liquid crystal display |
| Frame composition | Columns and beams are made of H type steel, Channel steel, angle
steel and square pipes; |
| Parts appearance treatment | Galvanized treatment and high-grade anti-corrosion painting |
| Parking way | Forward in, Back out |
| Electricity | 3 phases 5 wires, 380V, 50HZ |
Characteristics
Hydraulic Pit Lift Parking System saves the land area and takes
full use of the underground area. It can be designed with
neighbored multi-sets layout to raise the parking numbers of cars.
The middle and bottom cars may have advantages of anti-dust,
anti-rain, anti-theft. It is safe and reliable and easy in
operation.
Low area coverage and high usage rate of space; The levels and
columns will be added to raise the number of cars according to the
customer's requirements; It may be designed with full-closed style
to adjust the surrounding environment; It operates steadily without
noise and with fast operating speed and short parking and releasing
time; Multi-ways of safety protection and series of safety
protection devices for anti-dropping, anti-crashing and
anti-overloading.
