Work Principle

Vertical lifting mechanical parking system adopts comb pallet combined with characteristics of PSH hydraulic puzzle parking system and vertical lifting parking system, driven by hydraulic large transmission ratio.

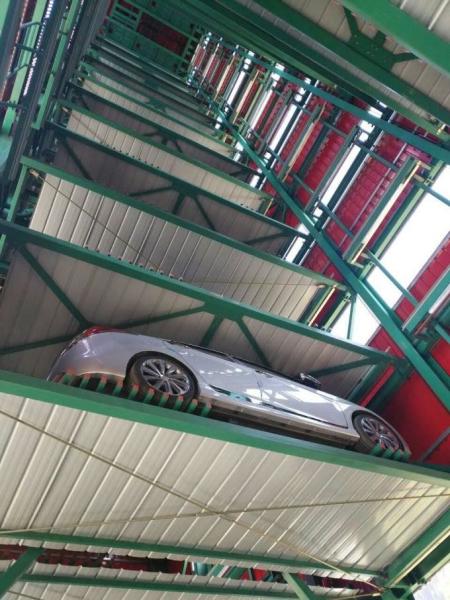

Parking: The turntable turns at work position; The lifter falls down, drive the car into the ground parking space, the driver come out of car and goes to the operative panel, card reading or manual button operation, the lifter lifts the car to the top position of the appointed car parking space, the comb pallet slide out to the middle lift channel, the lifter falls and puts the car on the comb pallet, the comb pallet with the car slide into the space; the lifter falls to the ground waiting for next car parking.

Retrieving: The comb pallet with the car together slide out to the middle channel, the lifter lift up and exchange the car on to the lift comb, the comb pallet slide into original space, the lifter falls and puts the car on the ground comb turntable, the turntable turns 180 degree, the driver now can go into car and drive away directly.

Characteristics

• Vertical lifting mechanical parking system only needs 50 square meters to park 50 parking Spaces.
• Elevator drag lift, super speed 2 meters per second.
• Can be single tower, parallel, well, recolumn etc. a variety of combinations.
• Each tower 50 parking, high-speed to take the car, the cost is relatively cheap.
• Low noise, smooth lifting.
• Touch screen button operation
• can be equipped with inductive card reader, charging management system.
• The parking space is checked in the seat, and the personnel is checked in the warehouse.
• Prevent the vertical and horizontal jumping device of the platform during earthquake.
• Operation state real-time display, failure record

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
