Hydraulic Pit Lift Parking System, 1 car in the pit, 1 car on the
ground-PJS(-1+1)
Working principle

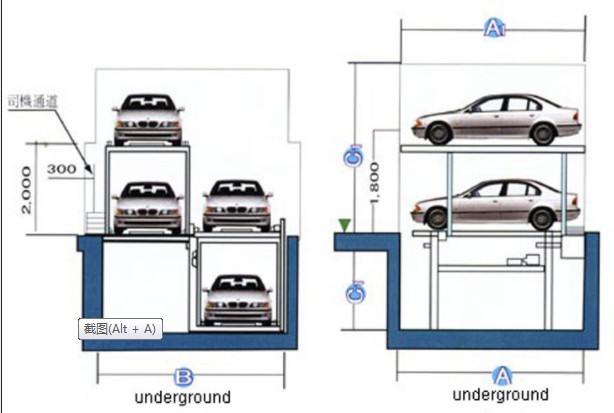

Hydraulic Pit Lift Parking System is designed with 2 levels, one in
the pit, one on the ground, each column can lift up and down
freely. The top car can go directly in and out, the pit car can

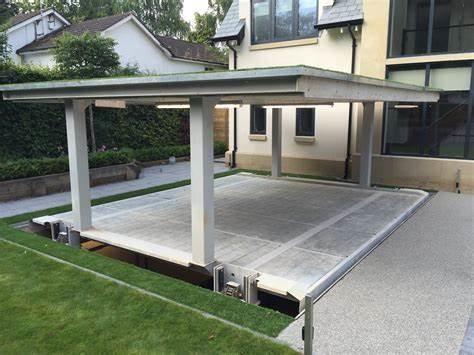

lift up to the ground level, and go in and out. It has a big pallet
covering the top pit area. The pallet is 150mm higher than the land
level, it has a 1500mm slopping way for the car parking, and it has
a tight cover with the ground frame against water into the pit. It
is designed with water drainage system, maintenance entrance with
ladders.
The top car pallet can be planted with grass and flowers to keep a
wonderful environmental requirements.
Technical Parameters
| Item | Parameters |
| Product name | Hydraulic Pit Lift Parking System |
| Model | PJS(-1+1) |
| Levels of system | 2 |
| Spaces | Based on requirements |
| Size of car (L*W*H) | 5000*1850*1550mm |
| 5000*1850*2050mm |
| Weight of car | 2000kg |
| Motor power | Lift: 5.5~7.5KW |
| Safeguard devices | Hydraulic whole protection and anti-fall frame |
| Modes of operation | IC card reading / Manual button with keyboard |
| Controller | PLC |
| Warning devices | Sound, light, electricity |
| Malfunction indication | Fault diagnosis by computer, liquid crystal display |
| Frame composition | Columns and beams are made of H type steel, Channel steel, angle
steel and square pipes; |
| Parts appearance treatment | Galvanized treatment and high-grade anti-corrosion painting |
| Parking way | Forward in, Back out |
| Electricity | 3 phases 5 wires, 380V, 50HZ
|
Characteristics
Hydraulic Pit Lift Parking System saves the land area and takes
full use of the underground area. It can be designed with
neighbored multi-sets layout to raise the parking numbers of cars.
The middle and bottom cars may have advantages of anti-dust,
anti-rain, anti-theft. It is safe and reliable and easy in
operation.
Low area coverage and high usage rate of space; The levels and
columns will be added to raise the number of cars according to the
customer's requirements; It may be designed with full-closed style
to adjust the surrounding environment; It operates steadily without
noise and with fast operating speed and short parking and releasing
time; Multi-ways of safety protection and series of safety
protection devices for anti-dropping, anti-crashing and
anti-overloading.
Hydraulic driven and chain balance system.
Fully utilization of underground space.
Directly park or pick up the car at any level independently.
Galvanized wave plates platforms, cold bending and strong pressure
& humidity resistance.
Multiple mechanical locks on posts to ensure safety.
Flexible designed according to customer requirements, suitable for
residential & commercial use.
Electric sensors to confirm no persons or objects before rising
up/down the platforms.
