Pit Lift Parking System, 2 cars in the pit, 1 car on the ground, no
sliding-PJS(-2+1)
Working principle
This system is designed with 3 levels, 2 in the pit, 1 on the
ground, each column total 3 cars can lift up and down freely. The
top car can go directly in and out; the middle car can go in and
out when the middle car lift to the ground level; the bottom car
can go in and out freely when it lift up to the ground level. It
has big pallets covering the top pit area. Total depth of pit will
be 4260mm.
The pallet is 150mm higher than the land level, it has a 1500mm
slopping way for the car parking, and it has a tight cover with the
ground frame against water into the pit. It is designed with water
drainage system, maintenance entrance with ladders.
The top car pallet can be planted with grass and flowers to keep a
wonderful environmental requirements.

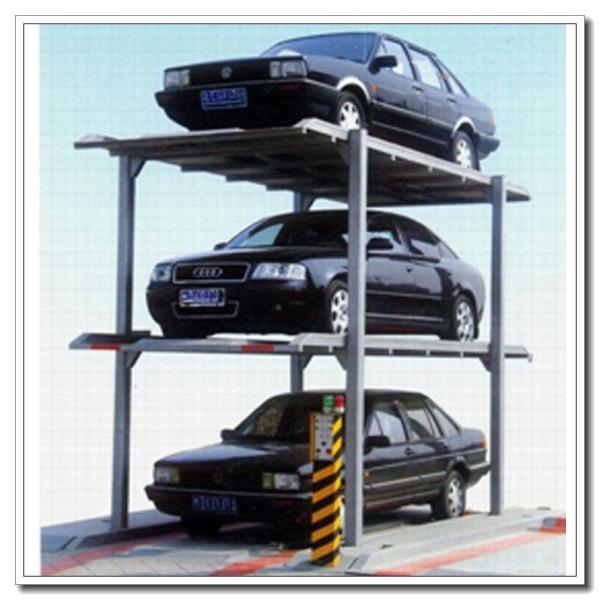

Description
It is also known as household stereoscopic garage, it is a
mechanical parking device that uses the lifting of the carrying
plate to realize double increase of parking spaces. This kind of
parking equipment structure is simple, compact, PLC or button
control, simple and fast operation. According to the driving mode
can be divided into motor drive and hydraulic drive. The equipment
is suitable for the construction of outdoor square, basement, small
villa residence, etc., mostly used in private homes, enterprises
and institutions, basement and other scenes.
Characteristics
- It saves the land area and takes full use of the underground area.
- It can be designed with neighbored multi-sets layout to raise the
parking numbers of cars.
- The middle and bottom cars may have advantages of anti-dust,
anti-rain, anti-theft.
- It is safe and reliable and easy in operation.
- Low area coverage and high usage rate of space;
- The levels and columns will be added to raise the number of cars
according to the customer's requirements;
- It may be designed with full-closed style to adjust the surrounding
environment;
- It operates steadily without noise and with fast operating speed
and short parking and releasing time;
- Multi-ways of safety protection and series of safety protection
devices for anti-dropping, anti-crashing and anti-overloading.
Main structure
- Steel structure
- Car pallet
- Lifting system
- Drive system
- Electrical system
- Safety guard device
- Hydraulic drive system or motor drive system
Technical Parameters
| Item | Parameters |
| Model | PJS(-2+1) |
| Levels of system | 3 |
| Spaces | Based on requirements |
| Size of car (L*W*H) | 5000*1850*1550mm |
| 5000*1850*2050mm |
| Weight of car | 2000kg |
| Motor power | Lift: 5.5~7.5KW, |
| speed: Lift: 3-6m/min |
| Fall: 5m/min |
| Slide: 0.2kw |
| Drive mode | motor chain drive |
| Modes of operation | IC card reading / Manual button with keyboard |
| Controller | PLC |
| Warning devices | Sound, light, electricity |
| Malfunction indication | Fault diagnosis by computer, liquid crystal display |
| Frame composition | Columns and beams are made of H type steel, Channel steel, angle
steel and square pipes; |
| Parts appearance treatment | Galvanized treatment and high-grade anti-corrosion painting |
| Parking way | Forward in, Back out |
| Electricity | 3 phases 5 wires, 380V, 50HZ |
