Working principle

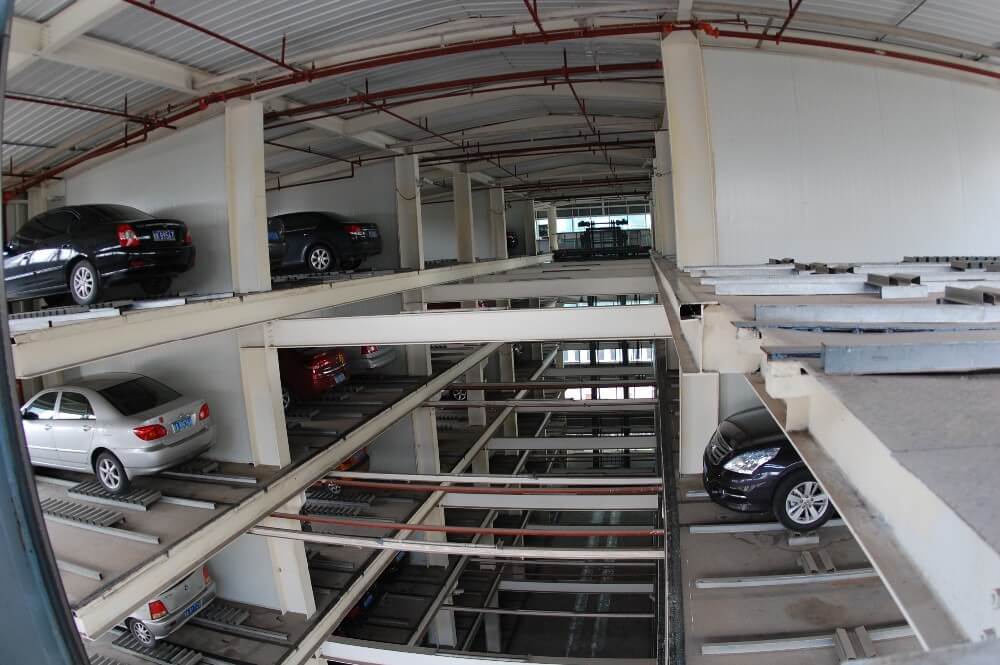

The cars are moved vertically through the lifter which is fixed the position.On the same floor,the cars are moved horizontally through the carrier,the lifter and carrier's cooperation to access the cars.

Each layer has a carrying trolley, the trolley will carry the car on this floor to the parking space or put it on the car elevator to realize parking or retrieving.

Type of the carrier: Comb exchanging type and wheel gripping type.

Characteristics

• Safe, stable and with high automatic degree.
• High working efficiency and high space using rate.
• Wide scope of application. It is mainly used to aboveground or underground parking area with large number of car spaces.

Composition of systems

1. Electric system
Electric control system
2. Main elevator
Elevator lift system; Counter weight system; Cabin system;
3. Trolley system
Sliding trolley; Carrying trolley;
4. Guide rail system
Elevator guide rail; Slide trolley guide rail;
5. Entrance / Exit
Entrance / Exit detection and operating system
Automated door
6. Parking spaces
Comb frame and space guide rail
7. Steel structure system (Optional)

Technical Parameters

Item		Parameters
Model		PPY
Levels of system		6 max
Size of car (L*W*H)		5300*1900*1550mm
Weight of car		2200kg max
Number of cars		Based on customer requirements
Mode of operation		Auto / Manual (Monitor control)
Speed of operation	lift	30m/min
	slide	100m/min
	parking and retrieving	25m/min
	Turning	4rpm
Motor power	lift	22KW
	slide	2.2KW
	parking and retrieving	1.5KW+0.5KW
	Turning	1.5KW
Electricity	for power	AC380V,50Hz, 3 phases 5 wires system
	for control	AC220V, 50Hz, 2 phases 3 wires system
Mode of parking		Forward in, Forward out
Mode of operation		IC Card / Touch screen / Manual
Warning devices		Sound, light, electricity
Malfunction indication		Fault diagnosis by computer, liquid crystal display
Frame composition		Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment		Galvanized treatment and high-grade anti-corrosion painting

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
