Two Post Parking Lift 2300kg

Description

This parking lift is designed with two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out;

It can be widely used in hotels, enterprises and public institutions and residential area. Column can be N+1 form, saving land area, full use of space.

Advantages

1. First safety control with protective devices

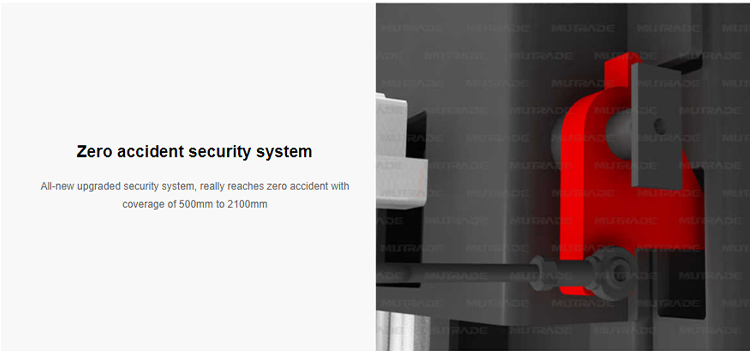

1) Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.

2) Limited switch device to protect the equipment running.

3) Photoelectric switch (device for checking the entrance of people and vehicles) to prevent the people from accidentally entering into the equipment under operation.

4) Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.

2. Oil cylinder

Used cylinder reversal, have many advantages, not distortion, dustproof. Adopt Italy Aston Seal ring.

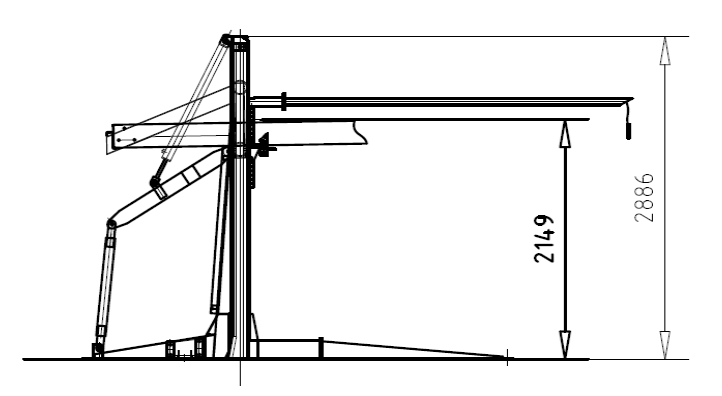

3. Adjusting lifting height, the maximum lifting height can be 1800mm for small SUV.

4. Lifting capacity can be 2300kgs;

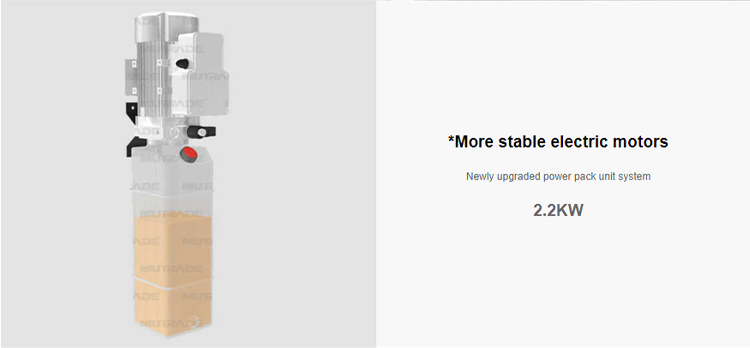

5. Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall;

6. Low noise, smooth operation, save energy, low carbon and environmental protection;

7. Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow polluting the lower vehicles;

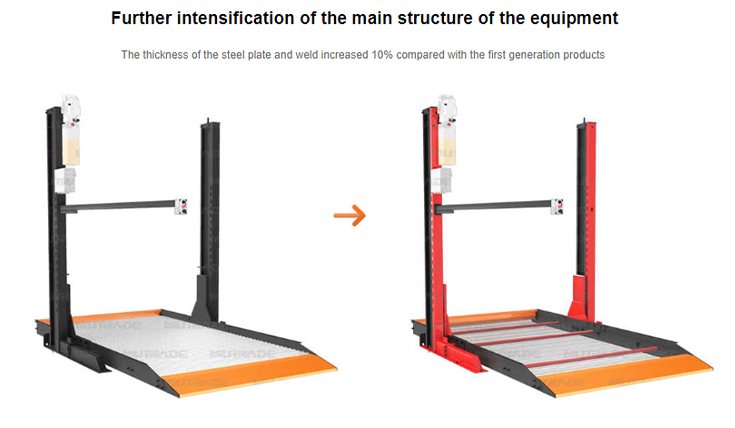

8. Structure all adopts layer cutting, attractive appearance, easy installation, less malfunctions, easy maintenance.

9. Plastic spraying high quality coating, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics;

10. Simple structure, easy installation, minimal requirements for civil engineering;

11. Certifications: CE

Technical Parameters

Product Detail

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
