PCX- Space Saving 5-7 Floor Fully Automated Vertical Rotary Parking
System
What is rotary parking system?
Rotary parking system is a kind of circular parking equipment
similar to the carousel, access vehicles through all the rotation
of the platform, there are generally 8 parking spaces,10 parking
spaces,12 parking spaces and other types.
Product Details
Rotary parking system is one of the most space-saving systems that
allows you to park up to 16 SUVs or
20 sedans in only 2 conventional parking spaces. The system is
independent, no parking attendant is required.
By inputting a space code or swiping a pre-assigned card, the
system can recognize your vehicle automatically
and find the faster path to deliver your vehicle down to ground
either clockwise or counterclockwise.
Product advantages
- Don't need a large area, save space and only need to take up the
area of 2 parking spaces;
- Suitable for all types of vehicles;
- Easy to operate, no vibration noise;
- Fast operation speed, short access time;
- Standardized mechanism design, smooth opetation, safe the reliable;
- Equipped with safety protection device and emergency stop device,
safer to access the vehicle;
- Equipped with photoelectric detection, program control, automatic
access vehicles, can be unattended management;
- One-time investment, long-term benefit;
- Quick and simple installation(standardized products, 3-7 days to
complete the installation of your parking system).
Technical parameters
| Item | Parameters |
| Type | Vertical Rotary |
| Levels of system | 5 |
| Paring Spaces | 8 |
Size of car
(L*W*H) | 5300*1900*1550mm
5300*1900*1950mm |
| Car Weight | 2000kg / 2350kg |
| Drive motor | 5.5kw |
| Rotating Speed | 4.4m/min |
| Parking time | 60S |
| Drive Mode | Motor + Chain |
| Control | PLC type (basic) |
| Control Method | Touch screen / Push button or IC card |
| Parking way | Forward in, Back out |
| Electricity | 3 phases 5 wires, 380V, 50HZ |
| Safety devices | 1.Car block device (Positioning)
2.Operation warning device (Warning light)
3.Car position detection device (Over length, over width detection)
4.Malfunction warning device
5.Man or car mistake entrance detection (Photoelectric switch
protection devices);
6.Emergency brake device when electricity cut off;
7.Over current flow protection device
8.Key switch against wrong operation;
9.Wrong phase, shortage phase protection, motor over loading
protection device;
10.Emergency stop button; |
Dimensions
Main Structures
Rotary parking system is composed of 7 basic structures
Foundation, Steel structure, Pallets, Transmission, Control System,
Safety Protection Devices and other Auxiliary Devices;
Safety characteristics
Maintenance
To ensure proper and stable fuction of entire parking system in the
long run, regular and periodic inspection & maintenance
are also of vital importance:

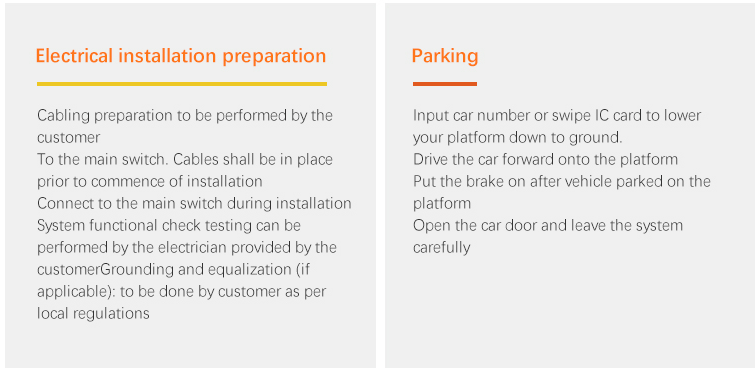

Notes
